G29系列高性能直行程执行机构

Group 29 Linear Control Valve Actuators

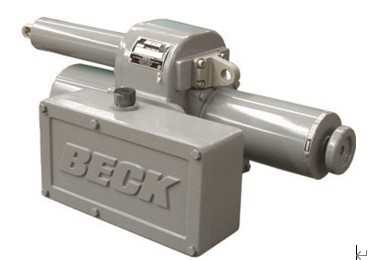

29系列直行程阀门执行机构

The Group 29 linear control valve actuator is a more modern variation of the time-proven Group 14.  Group 29 actuators incorporate a high-efficiency ball screw that allows for a wider range of thrust options in a smaller package.  The Group 29 also offers standard thrust sensing capabilities and it can be certified for service in both gas and dust hazardous location.  The Group 29 is well suited for linear control valve applications and can be offered with mounting hardware for almost and model valve requiring less than 27145 N and 19 mm stroke.  Important general actuator specifications include:

29系列直行程阀门执行机构相对于经典的14系列更现代化。29系列具有高效率的滚珠丝杆，可提供多种直行程控制选择方式。29系列也提供标准推力感应功能，可以在烟气危险工况环境下应用，适用于直行程阀门控制。结合贝克工厂生产的连接装置，几乎可以安装在所有小于27145 N和19 mm行程范围内的阀门。主要规范如下：

• Thrust capability:  4450 N up to 27,145 N
• Stroke Speed:  0.4 sec/mm to 0.6 sec/mm
• Stroke length:   13 mm up to 114 mm
• Input power:  standard 120 V or 240 V, 50 or 60Hz
• Standard operating temperature range:-40C to 85C
• Control service:
  • continuous modulating control,
  • Multi-position control,
  • Open/close control.
• Available control signals and digital networks:
  • 4-20ma (1-5V),
  • Foundation Fieldbus,
  • Profibus PA
• Minimum positioning step size: 0.1% of span
• Enclosure: Type 4X weather-proof and IP66/IP68
• 推力:  4450 Nm - 27,145 Nm
• 行程速度:  0.4 秒/mm – 0.6 秒/mm
• 行程范围:  13 mm - 114 mm
• 输入电源:        标准 120 V或 240 V, 50 或 60Hz
• 标准操作温度：-40C – 85C
• 控制性能 –
  • 连续调节控制
  • 多位置控制
  • 开/关控制
• 控制信号和数字网络 –
  • 4-20ma （1-5V）
  • 基金会现场总线
  • Profibus-PA
• 精度：总行程的0.1%
• 外壳：Type 4X 和 IP66/IP68
